minaintertools.com
ลวดเชื่อมเงิน
Silver Brazing Wire/Rod

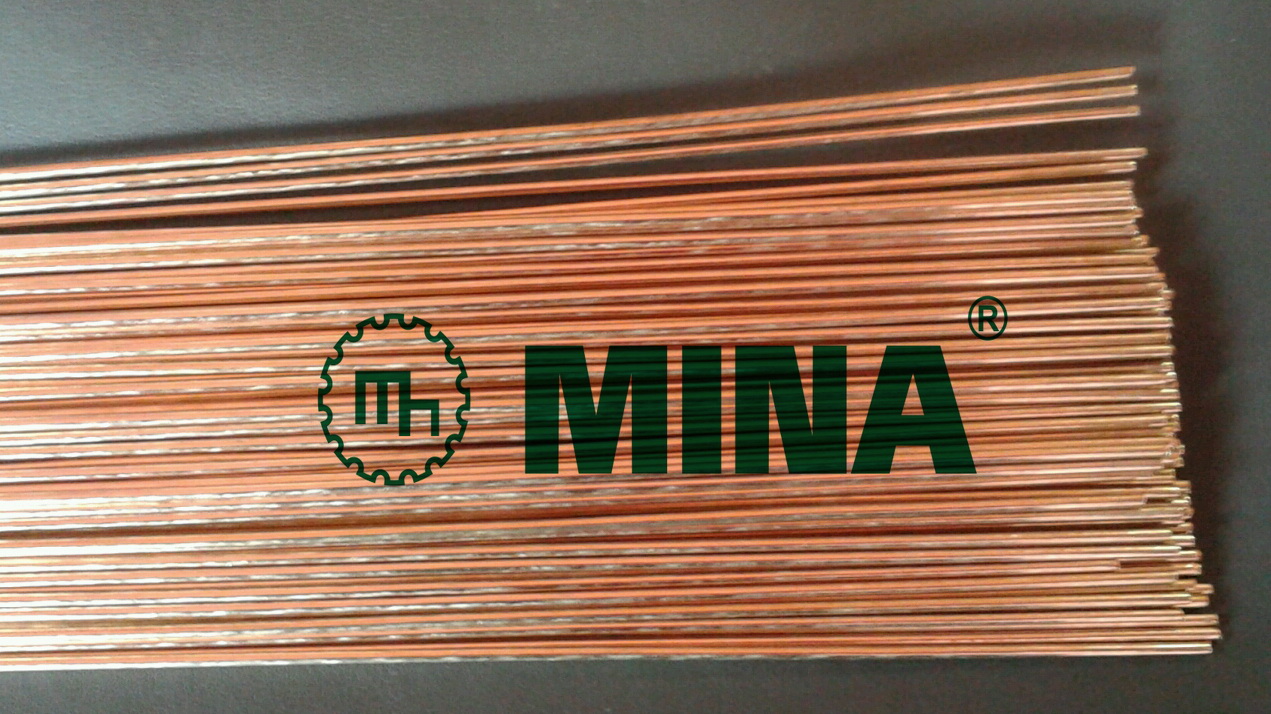

ลวดเชื่อมเงิน 15% ชนิดลวด ขนาด 1.5mm.*450mm

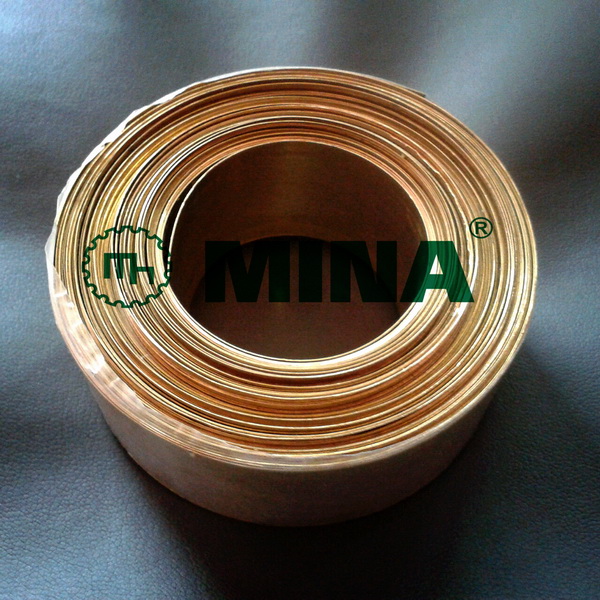

ลวดเชื่อมเงิน 35% ชนิดแบน ขนาด 40mm.*0.5T
Silver Brazing Alloy
High silver brazing alloy is composed of silver or silver based alloy. It has perfect welding effect with low melting pointfine wettability and extensive flow property. For its high strength, good plasticity,good electric conductivity and corrrosion resistance, it can be used for welding all kinds of ferrous and non-ferrous metals except aluminum, magnesium and other low melting point metals.
| Brazing Alloy | Composition(%) | Melting Range | Principal areas of application | Applicable scope | |||||
| (oC) | |||||||||
| Ag | Cu | Zn | Ni | Impurities Total | Solidus | Liquidus | |||
| Sag-10 | 9-11 | 52-54 | 36-38 | 815 | 850 | The melting point is high, the sheet flood attachment plasticity is bad | Is mainly suitable for the steel hard alloy copper, the copper alloy | ||
| Sag-20 | 19-21 | 40-42 | 38-40 | 690 | 810 | The melting point is slightly high, the sheet flood attachment plasticity has the improvement | |||
| Sag-25 | 24-26 | 40-42 | 33-35 | 700 | 800 | The sheet flood is good, rock drill seam bright and clean good braze ability and proper intensity | Is suitable in the steel, the stainless steel, copper, in the copper alloy parts braze welding refrigerator air conditionings nation tube. | ||
| Sag-35 | 34-36 | 29-31 | 34-36 | 685 | 755 | The braze welding temperature decreases the attachment overall performance improvement | Is suitable in the steel, the stainless steel, the copper alloy part welding. | ||
| Sag-50 | 49-51 | 33-35 | 14-18 | 690 | 775 | The attachment intensity bears the impulse high | Is suitable in the electricity, the dairy product, the food industry the steel, copper, the copper alloy braze welding. | ||
| Sag-72 | 71-73 | 21-29 | 779 | 779 | The eutectic solder does not contain the zinc braze welding temperature to be high | Is suitable in the gas protection, the vacuum brazing. | |||
