ใบตัดเพชร รุ่นตัดแห้ง

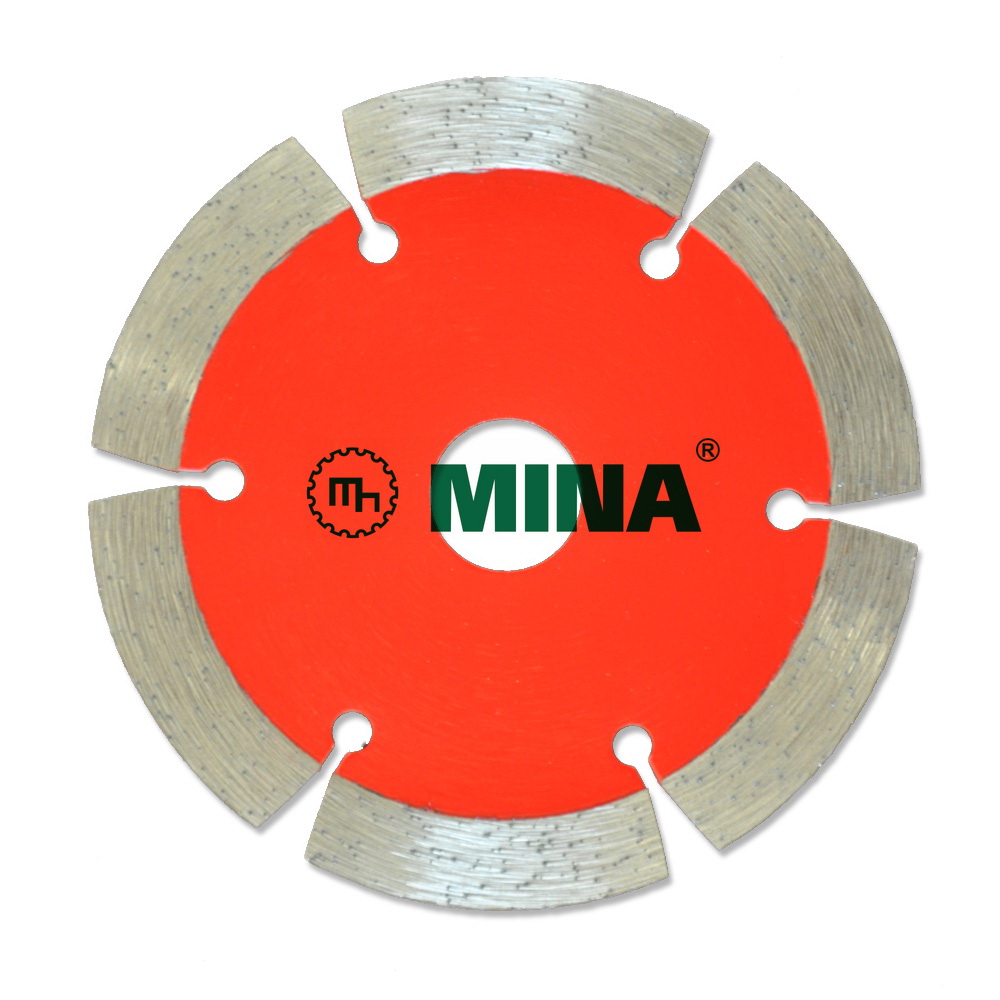

Diamond saw blade, Segment type



Dry cutting blade-Segment type
1.dry cutting granite and other engineered stone
2.balance is good,don’t wobble
3.sharp segment
-Dry cutting blade
-Hot pressed sintered segment,very sharp for cutting fast,
  and very long life.
Outer Diameter  Hole Segment Thickness Segment Height
Inch mm mm mm mm
3" 80 16/20 1.8 8/10/12mm
4" 100 16/20/22.3 1.8 8/10/12mm
4.3" 110 16/20/22.3 1.8 8/10/12mm
4.5" 115 16/20/22.3 1.8 8/10/12mm
5" 125 16/20/22.3 2.2 8/10/12mm
6" 150 16/20/22.3 2.2 8/10/12mm
7" 180 16/20/22.3 2.4 8/10/12mm
8" 200 16/20/22.3 2.4 8/10/12mm
9" 230 16/20/22.3 2.6 8/10/12mm
