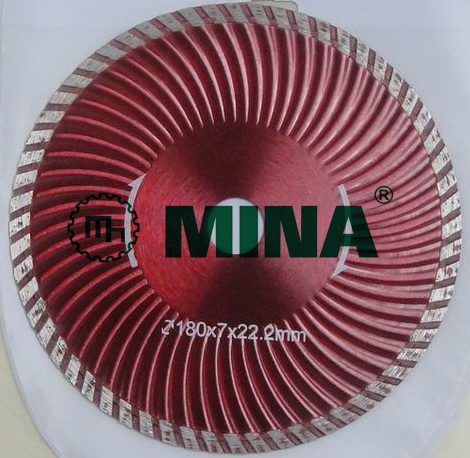

| Dry turbo wave blade |
| Turbo cutting blade |
| 1 Small diamond cutting blade |
| 2 Dry wave blade |
| 3 Stone edge cutting granite |
| 4 Fix on angle grinde |
| Diamond Dry Cutters (Small Diamond Saw Blades), diameter from 4"(105mm) - 9"(230mm), |
| for fast cutting Kinds of Hard, Medium Hard, Soft Stone, Asphalt, Ceramic, Porcelain, Bricks |
| like Granite, Marble, Sandstone, Limestone etc.Materials like Concrete, and other Construction |
| Hot Sintered or Code Pressed (Performance of Hot Sintered blade is much better than |
| Cold Pressed products, however cost is also higher). Usually we offer Hot Sintered products. |
| Dry or Wet Use! |
| Feature: |
| 1.Fast cutting without chipping , |
| 2.Outstandding cutting perfomance |
| 3.Hot pressed or cold pressed blade ,high |
| frequency welding to be optional. |
| Outer Diameter |
Hole |
Segment Thickness |
Segment Height |
| Inch |
mm |
mm |
mm |
mm |
| 3" |
80 |
16/20 |
1.8 |
8/10/12mm |
| 4" |
100 |
16/20/22.3 |
1.8 |
8/10/12mm |
| 4.3" |
110 |
16/20/22.3 |
1.8 |
8/10/12mm |
| 4.5" |
115 |
16/20/22.3 |
1.8 |
8/10/12mm |
| 5" |
125 |
16/20/22.3 |
2.2 |
8/10/12mm |
| 6" |
150 |
16/20/22.3/25.4 |
2.2 |
8/10/12mm |
| 7" |
180 |
16/20/22.3/25.4 |
2.4 |
8/10/12mm |
| 8" |
200 |
16/20/22.3/25.4 |
2.4 |
8/10/12mm |
| 9" |
230 |
16/20/22.3/25.4 |
2.6 |
8/10/12mm |
