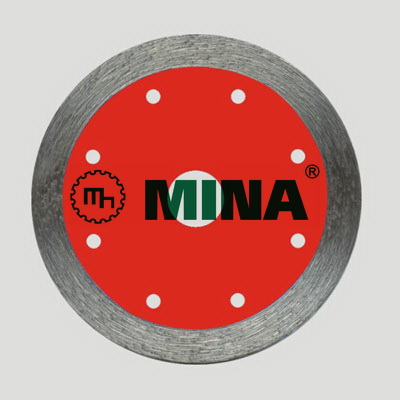

| Diamond saw blade wet use type |
| Continuous Rim type |
| Diamond saw blade wet use type |
| it is wet using blade for cutting granite, marble & ceramic tile, |
| It desire feed water, continuous rim. |
| it is wet using blade for cutting granite and marble too, |
| It desire feed water,continuous rim blade |
| continous use of the a dry blade will cause exessive heat build up, |
| thus reducing the life of the blade,So using water to cool also |
| can clean the dust produced, Keep the cutting area clear, |
| If don’t feed water,will shorten the life drastically, |
| even possible damage to the blade and user, |
| Specification of continuous rim blade: |
|
| |
|
|
|
|
| Outer Diameter |
Inner Diameter |
Dimention of teeth |
| Inch |
mm |
Thickness |
Height |
| 1.6 |
40 |
5 |
1.8 |
10 |
| 3 |
80 |
16/20 |
1.8 |
10 |
| 4 |
105 |
16/20/22.23 |
1.8 |
15 |
| 4 |
107 |
16/20/22.23 |
1.8 |
15 |
| 4.5 |
114 |
16/20/22.23 |
1.8 |
15 |
| 4.5 |
114 |
16/20/22.23 |
1.8 |
15 |
| 5 |
125 |
16/22.23/25.4 |
2.2 |
12 |
| 6 |
150 |
16/22.23/25.4 |
2.2 |
12 |
| 7 |
180 |
16/22.23/25.4 |
2.4 |
12 |
| 8 |
200 |
16/22.23/25.4 |
2.4 |
10 |
| 9 |
230 |
16/22.23/25.4 |
2.6 |
10 |
| 10 |
260 |
30/50/60 |
3 |
10 |
| 12 |
300 |
50/60 |
3.2 |
10 |
